Regular price $15.00
/

Here we have our Six-Rail Connector V2. It can be used for a fully removable chassis.



Dimensions:

Diameter: 22mm

Height: 1.6mm

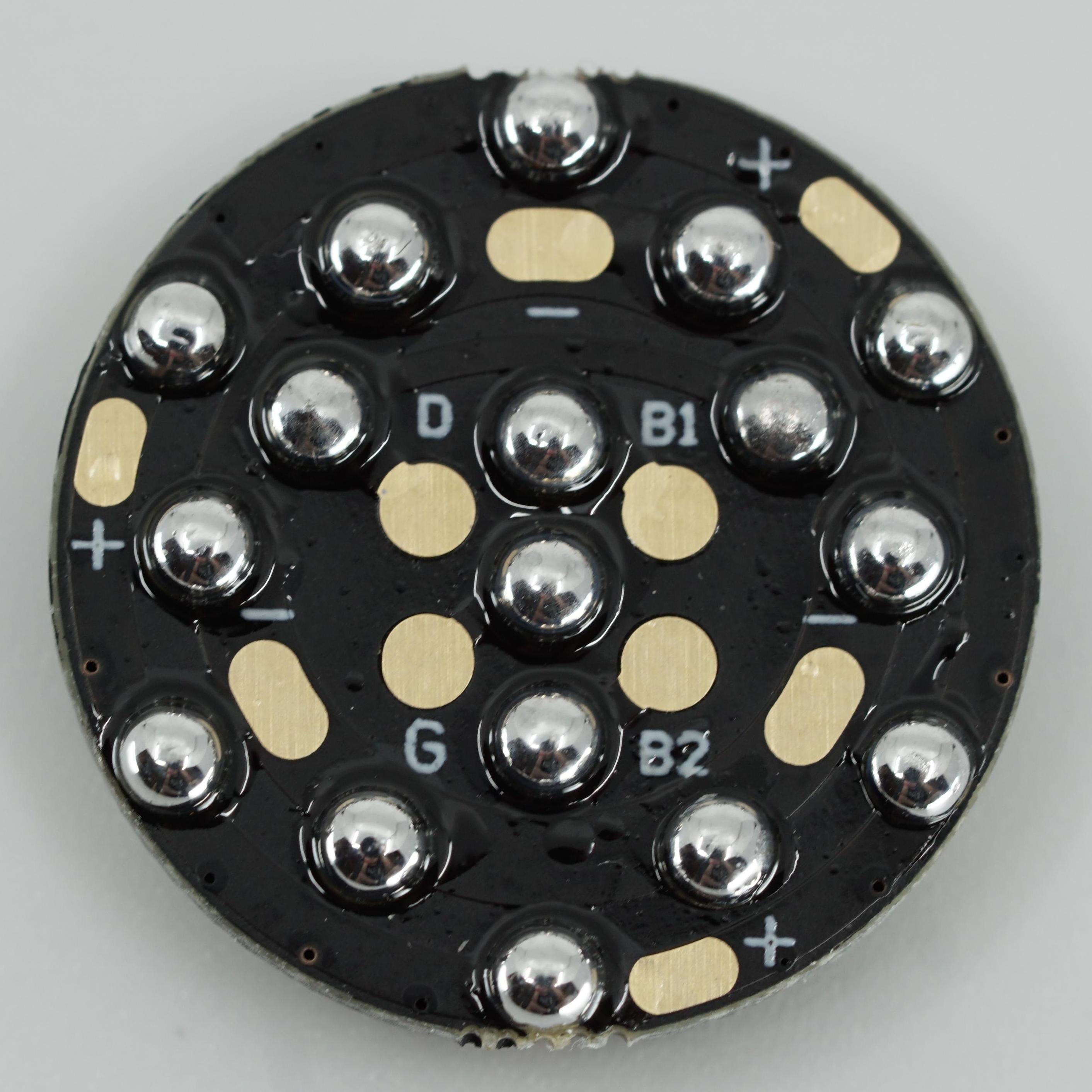

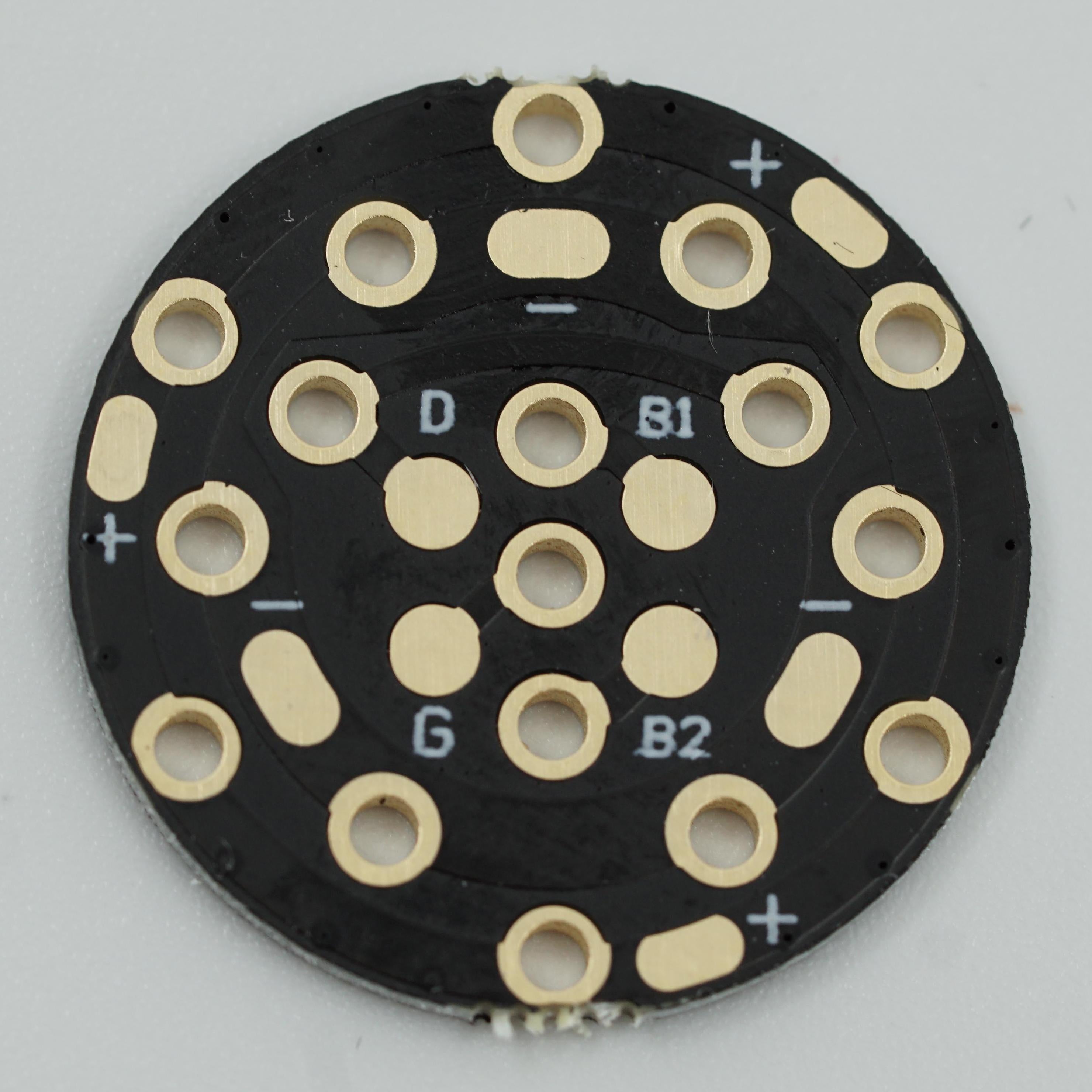

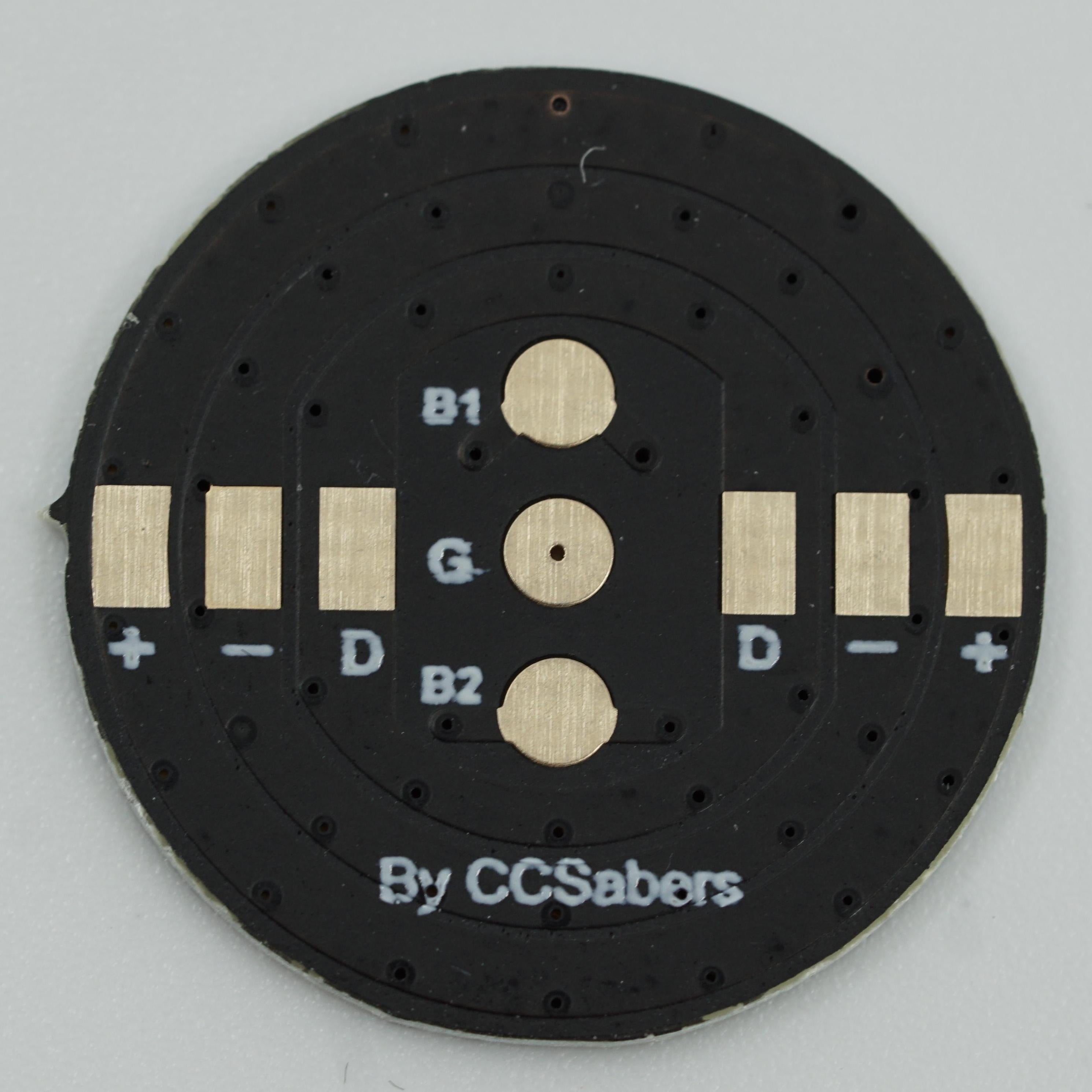

Soldering Pads on the PCB:

-: For the neopixel negative

Data: For the neopixel data

+: For the neopixel positive

B1: For a button/switch

GND: Common ground for switches

B2: For another button/switch



One Set Includes:

-2x PCBs: Matte Black Soldermask, Immersion Gold Plate

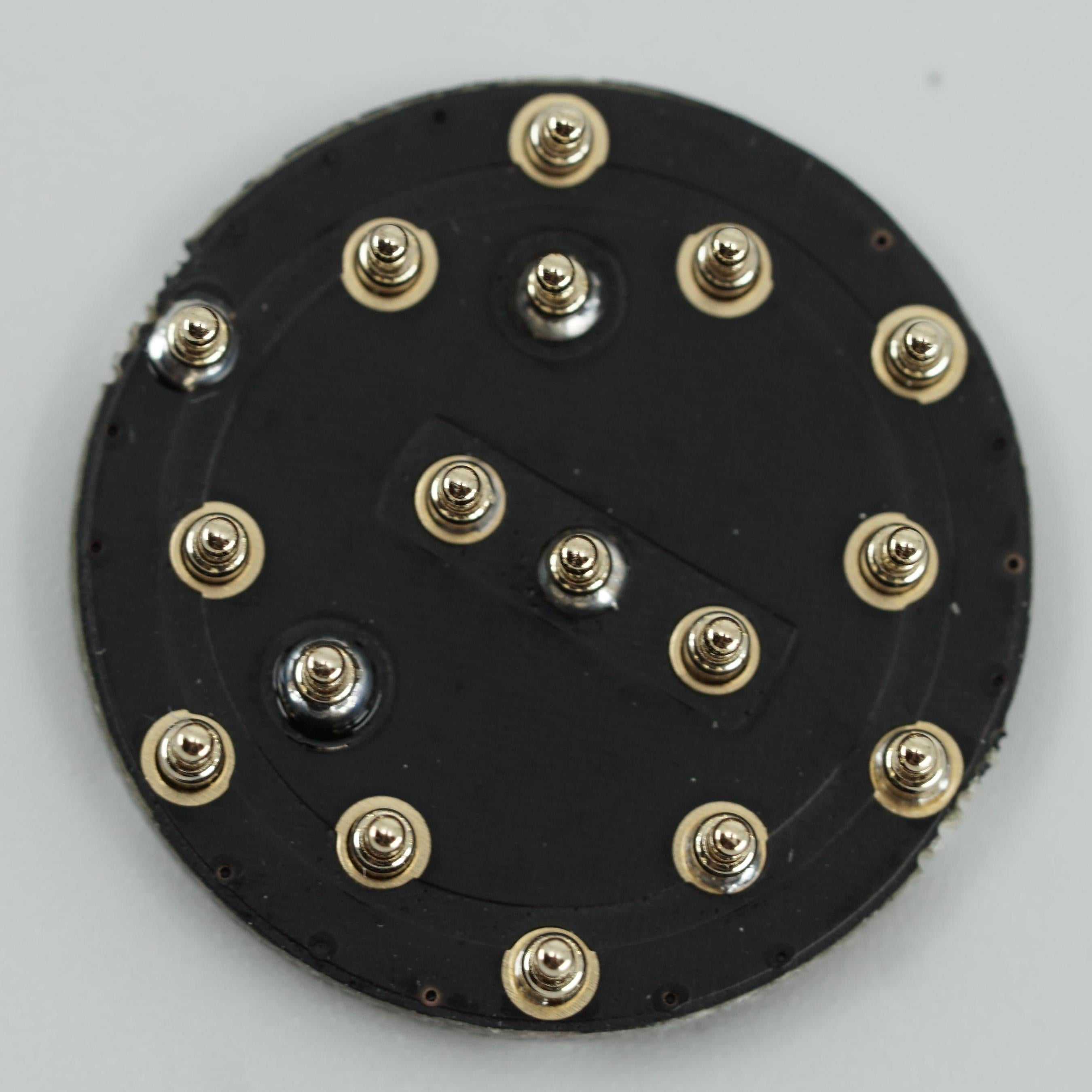

-18x Gold Plated Pogo Pins



Disclaimer:

Please use this at your own risk. Make sure you know what you are buying and what you are doing. Improper usage will cause electronic parts to be damaged as well as do harm to the user.
