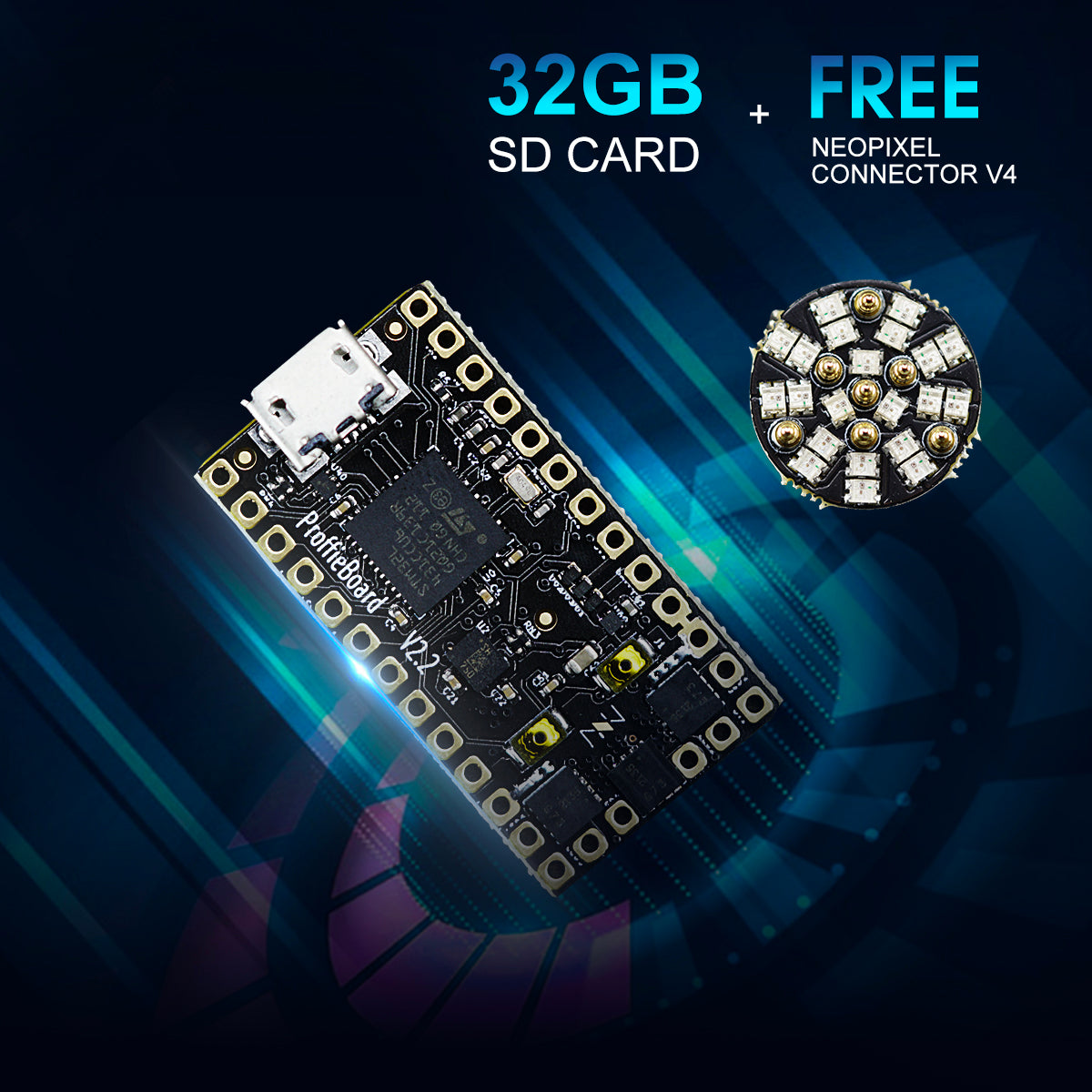

Proffieboard V2.2, 32GB SD Card & Neopixel V4 Connector - Everything You Need
Buy one proffieboard, you get a neopixel connector V4 for free!
Proffieboard V2.2 Price drop due to potential Proffieboard V3.9 Run (2023.5.25)
For batch orders above 20 pieces send me a message. Free Shipping to all US addresses.
This board is Authorized by the original maker. We have the ZZ logo on it.

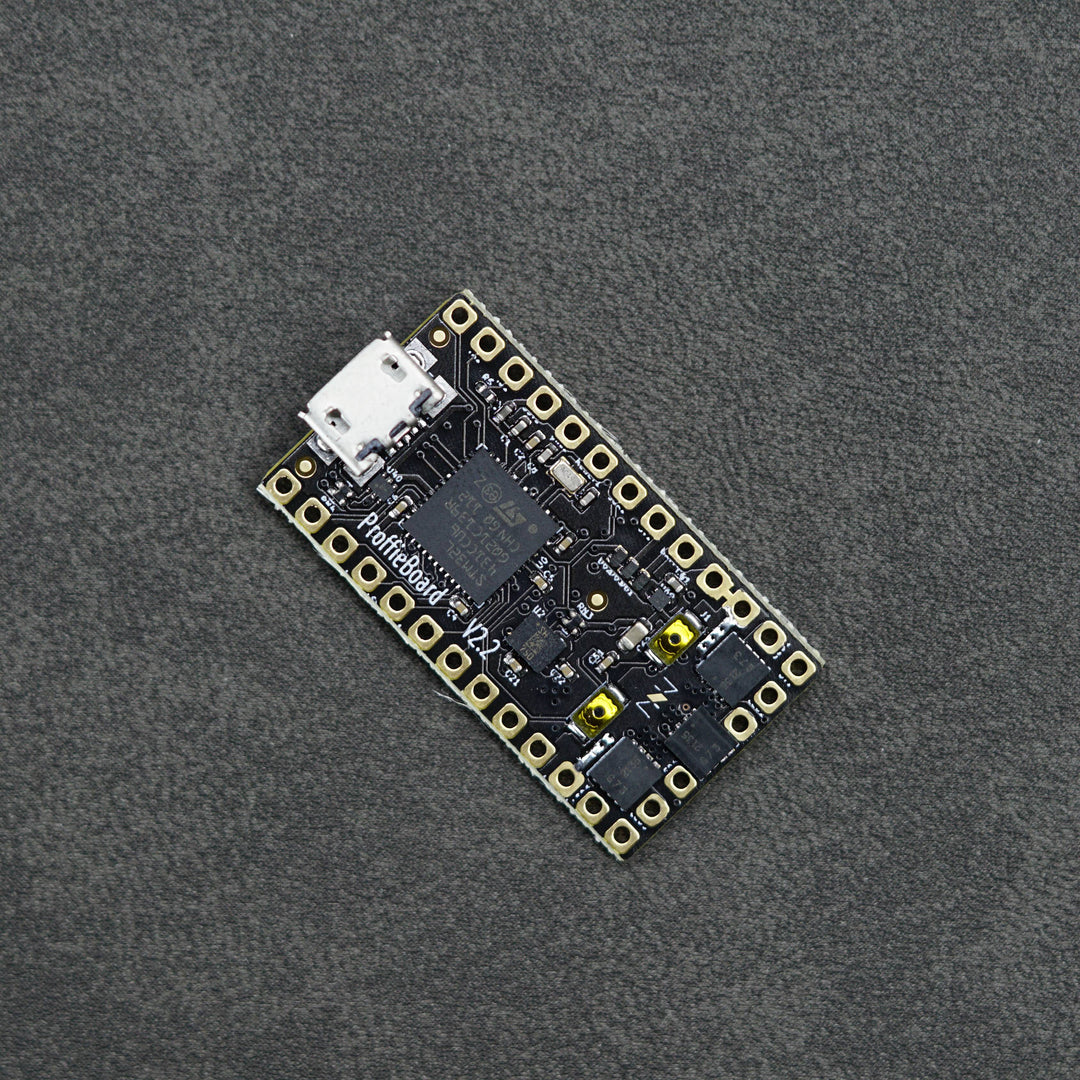

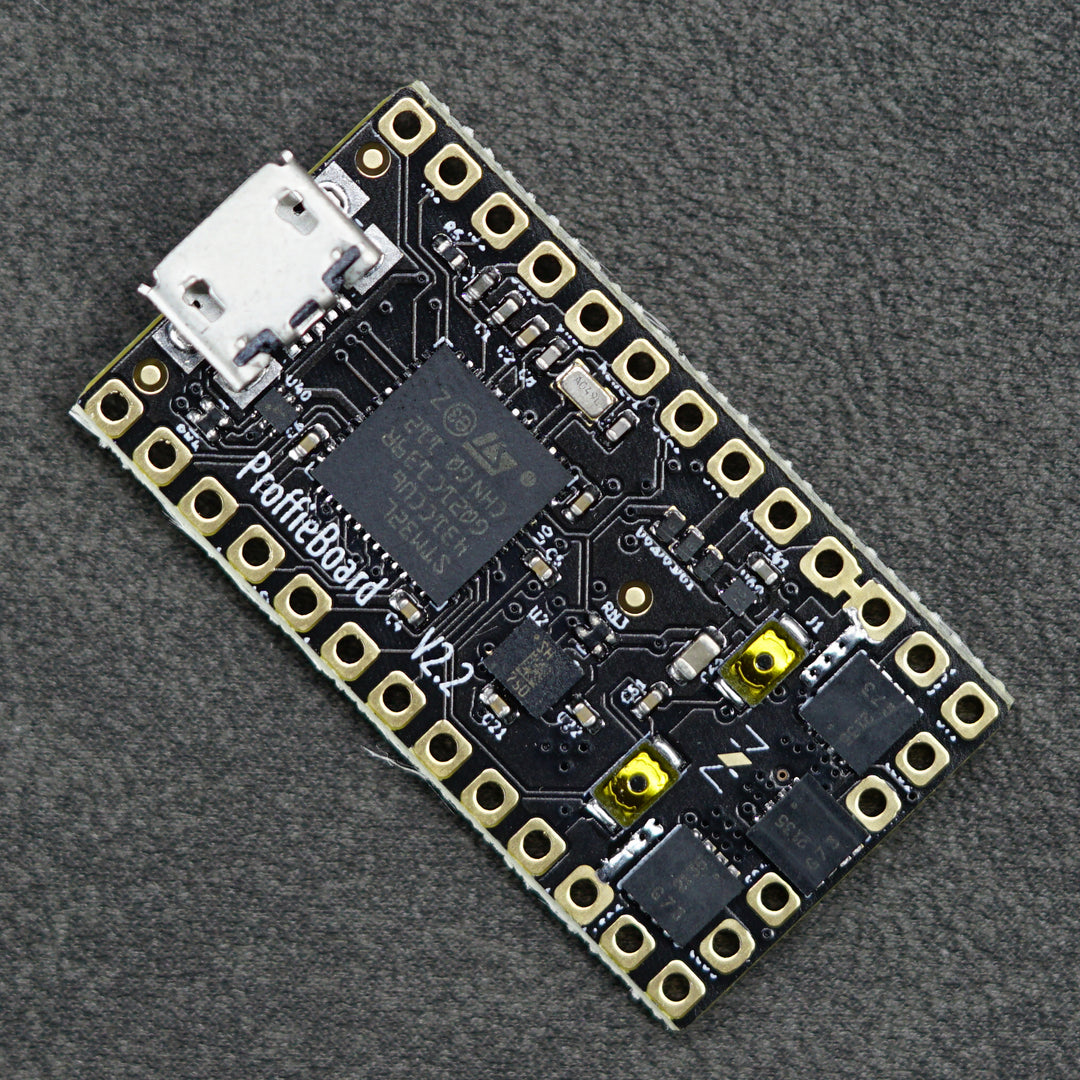

Well, this is a Proffieboard V2.2. Each board will be tested by the tester provided by Fredrik.
When you buy a Proffieboard from us. A part of the money will go to the creator of the board. This pays for his help with any problems our customers have with the Proffieboards and also helps finance future Proffieboards!
Why Choose CCS ProfiBoard V2.2?
-
Confirm Authorization: Verify original ZZ logo for authenticity and creator support.
-

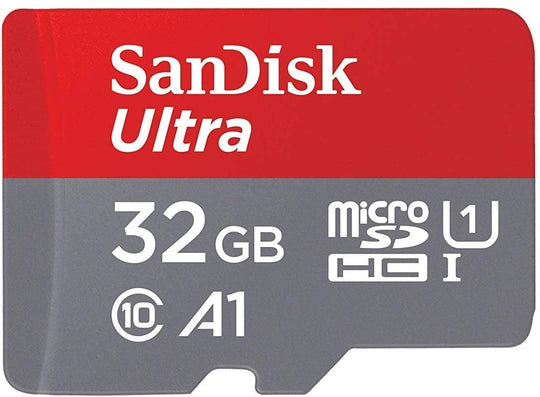

32GB High-Speed Storage: Pre-loaded UHS-I Class 10 microSD card included
-
Enhanced Performance: 256KB flash memory and 64KB RAM,it provides enough capacity for a wide range of presets and configurations
-
Faster Processing: The reliable SPI SD card interface has been thoroughly tested across numerous builds, ensuring stable data transfer for your audio and other operations.
-
Free Neopixel Connector V4: A valuable bonus, the FREE CCS Neopixel Connector V4 (worth over $15) simplifies blade connection, saving you time and effort during installation.
-
USA Warehouse Shipping: Fast, reliable delivery from domestic stock
-
Smooth Swing Technology: Most realistic motion-reactive sound effects available
-
Fully Customizable: Open-source platform with endless programming possibilities
WHAT'S INCLUDED
Package Contents
✅ 1x CCS Proffieboard V2.2 - Authorized board with official ZZ logo
✅ 1x 32GB microSD Card - Pre-loaded with default sound fonts (UHS-I Class 10)
✅ 1x CCS Neopixel Connector V4 - FREE bonus ($15+ value)
✅ Documentation Access - Manuals, tools, support links, Videos & Tutorials
Not Included (Purchased Separately)
❌ Battery and charging cable
❌ Speaker
❌ LEDs or Neopixel strips
❌ Buttons/switches
❌ Wire and connectors (except included V4)
PROFFIEBOARD V2.2 VS V3.9 COMPARISON
When to Choose V2.2:
Perfect If You:
- Want proven technology at exceptional value
- Experience smooth swing and motion reactivity.
- Build standard 1-2 button configurations.
- Prefer mature, stable firmware.
- Have budget constraints
- Don't need the absolute latest features.
V2.2 Advantages:
- ✅ Lower price point
- ✅ FREE Neopixel Connector V4 included
- ✅ Proven reliability with thousands of builds
- ✅ Sufficient power for most projects
- ✅ Same smooth swing technology
- ✅ Full open-source customization
When to Upgrade to V3.9:
Consider V3.9 If You:
- Need maximum memory for complex builds.
- Want built-in USB charging.
- Require faster SD card access (SDIO)
- Plan an extensive, multi-layered audio.
- Need additional GPIO pins.
- Want the absolute latest technology.
V3.9 Upgrades:
- Double flash memory (512KB vs 256KB)
- 2.5x more RAM (160KB vs 64KB)
- SDIO SD interface (much faster)
- Built-in USB charging (450mA)
- More GPIO pins available
- Onboard status LED
The Bottom Line:
For most builders, the Proffieboard V2.2 provides smooth swing, unlimited customization, professional audio, and open-source flexibility—all at a lower price and with a FREE connector. V2.2 powers thousands of builds and remains supported. Unless you need V3.9's advanced features, V2.2 offers strong value while preserving your creativity.
IDEAL FOR
Custom Saber Builders
As a Custom Saber Builder, you can create one-of-a-kind sabers with personalized sound fonts, blade animations, and effects that reflect your character and style. At the same time,
Budget-Conscious Enthusiasts
Budget-Conscious Enthusiasts can get professional Proffieboard features at a reduced price compared to V3.9, with the added bonus of a FREE Neopixel Connector V4. If you're new to Proffieboards,
First-Time Proffieboard Users
First-Time Proffieboard Users will benefit by starting with proven V2.2 technology while learning the platform. You always have the option to upgrade to V3.9 later if needed—your knowledge transfers completely. Similarly,
Upgrade Projects
Upgrade Projects benefit as you can transform basic RGB sabers into professional Neopixel builds with motion-reactive sound and advanced lighting effects. For those who enjoy technical exploration,
Tech Hobbyists
Tech Hobbyists can explore Arduino development, learn open-source programming, and push the boundaries of what's possible with saber electronics. In addition,
Cosplay Performers
Cosplay Performers can achieve screen-accurate sound and lighting effects with motion-reactive technology that responds naturally to choreography. For educators and organizers,
Workshop Instructors
Workshop Instructors may wish to stock up with bulk pricing (20+ units) for group builds, classes, or makerspace projects. Meanwhile, for collectors,
Collectors
Enhance your collection with professional-grade electronics at an outstanding value while supporting the original creator.
SHIPPING & WARRANTY
Shipping Information
- Ships From: USA warehouse for domestic orders
- Delivery Time: 3-7 business days (USA), 7-15 days (international)
- Tracking: Provided for all orders
- Packaging: Anti-static bag with protective cushioning
Warranty Coverage
- Testing: All boards tested before shipping
- Support: Access to the original creator for technical issues
- Returns: Standard CCSabers return policy applies
- Note: Professional installation recommended; self-installation at own risk
Customer Satisfaction
Count on CCS’s well-known quality and responsive customer care. Join our community of thousands who trust us for their custom saber projects—we look forward to serving you!
ORDER YOUR PROFFIEBOARD V2.2 TODAY
Experience smoother dueling, superior sound, and easy customization with the CCS Proffieboard V2.2. Upgrade to enjoy advanced effects, reliable performance, and maximum creativity for your unique saber.
Included: Authorized Proffieboard V2.2 + 32GB pre-loaded microSD card
When you're ready to begin, simply add it to your cart for fast shipping and join a welcoming community passionate about saber technology!
Complete Sabers with Proffieboard:
COMMUNITY & SUPPORT
Online Resources
ProffieOS Official Site: Offers complete documentation, a configuration generator, and software downloads.
CCSabers Tutorial Library: Provides step-by-step installation guides and troubleshooting resources. Videos & Tutorials.
Proffieboard Forums: Active community of thousands of builders
YouTube Tutorials: Video guides for visual learners
Facebook Groups: Real-time help and inspiration from fellow builders
FREQUENTLY ASKED QUESTIONS
Q: What's the difference between Proffieboard V2.2 and Proffieboard V3.9?
A: V3.9 offers double the flash memory (512KB vs 256KB), 2.5x more RAM (160KB vs 64KB), faster SD card access via SDIO, built-in USB charging, more GPIO pins, and an onboard status LED. However, V2.2 provides the same smooth swing technology, motion reactivity, and customization capabilities at a lower price with a FREE Neopixel Connector V4 included.
Q: Do I need programming experience to use Proffieboard V2.2?
A: Basic Arduino knowledge helps, but the online configuration generator creates most code automatically. The Proffieboard community provides extensive tutorials, wiring diagrams, and step-by-step guides for beginners. Expect a learning curve, but thousands of first-time builders have succeeded with community support.
Q: Is this an authorized Proffieboard?
A: Yes, this board carries the official ZZ logo, certifying it's authorized by Fredrik Hubinette, the original Proffieboard creator. A portion of the proceeds supports ongoing development and customer technical support. Avoid counterfeit clones that lack this authentication and support network.
Q: What's included with my purchase?
A: You receive the Proffieboard V2.2 soundboard with official ZZ logo, a 32GB high-speed microSD card, and a FREE CCS Neopixel Connector V4 (retail value $15+). All boards are tested with Fredrik's official tester before shipping.
Q: What is the Neopixel Connector V4, and why is it valuable?
A: The CCS Neopixel Connector V4 is a professional-grade pogo pin connector that creates a reliable, solder-free connection between your hilt and blade. It eliminates the need to solder delicate wires to blade PCBs, speeds up installation, and allows easy blade swapping. The pre-installed pogo pins save significant time and effort.
Q: How many sound fonts can I store on the 32GB card?
A: Typically 50-100+ complete fonts depending on font size and quality. The 256KB flash memory handles multiple presets with complex blade styles for each font.
Q: Can I use this for dueling?
A: Yes, but Proffieboard is designed more for display and light-to-moderate dueling rather than heavy combat. The Neopixel strips inside the blade can be damaged with hard hits. For heavy dueling, consider RGB sabers or use duel-rated Neopixel strips.
Q: Is the microSD card pre-loaded with sound fonts?
A: The card may come blank or with basic default fonts. You can easily download Fredrik's free default font pack or purchase premium fonts from creators like Kyberphonic. Loading fonts onto the card is simple via USB connection.
Q: Does it work with any Neopixel strip?
A: Yes, compatible with WS2811, WS2812B, WS2813, and similar chipsets. Four data pads let you control multiple independent strips. WS2813 is recommended for its built-in backup data line and reverse polarity protection.
Q: What is reverse polarity protection, and what are its limitations?
A: V2.2 includes reverse polarity protection that prevents damage to the board itself if you connect the battery backwards. However, the FETs' internal diodes don't fully protect Neopixels, which can still be damaged by reverse polarity. Always double-check battery connections before powering on.
Q: Can I charge the battery through USB?
A: No, V2.2 does not have built-in USB charging. You'll need an external battery charger for your 18650 or other lithium batteries. The V3.9 includes this feature if USB charging is important to you.
Q: How difficult is the installation?
A: More complex than plug-and-play boards due to extensive customization options. First-time builders should have basic soldering skills and allocate several hours for complete installation. The included Neopixel Connector V4 simplifies blade connection significantly.
Q: Can I upgrade from V2.2 to V3.9 later?
A: Yes, V3.9 is a drop-in replacement for V2.2 in most builds. Your existing configs are compatible, and the physical dimensions are nearly identical. Upgrade when you need the additional features, not before.
Q: What if I make a mistake during installation?
A: Test the board before soldering. If issues arise after installation, the community and CCS support can help with troubleshooting. Most problems stem from wiring errors or config mistakes - both fixable without replacing the board. Take your time, follow diagrams carefully, and ask for help when needed.
Q: Is there a warranty?
A: All boards are tested before shipping using Fredrik's official tester. Standard CCS warranty applies to defective boards. Note that damage from installation errors, improper use, or programming mistakes is not covered. Professional installation is recommended if you're not confident in your abilities.
Q: Do I need special software?
A: You'll need Arduino IDE (free download) and the ProffieOS library (also free). Both are well-documented with tutorials. The configuration generator creates your config file, which you upload via the Arduino IDE.
Q: How long does the battery last?
A: Battery life depends on capacity and usage, but typically lasts 1-3 hours of active use with the Neopixel blade. Standby time is much longer. Proffieboard's efficient power management extends runtime compared to some other boards.
Q: Can I get bulk pricing?
A: Yes! For orders of 20+ boards, contact CCS directly for special pricing. Perfect for group builds, workshops, maker spaces, or retail inventory.
Q: Why choose CCS over other Proffieboard sellers?
A: CCS provides authorized boards with the ZZ logo, thorough testing before shipping, the FREE Neopixel Connector V4 bonus, fast US shipping, responsive customer support, and a portion of sales goes directly to Fredrik to fund continued development.
